Fixed-size matrix with compile-time dimensions. More...

#include <matrix.hpp>

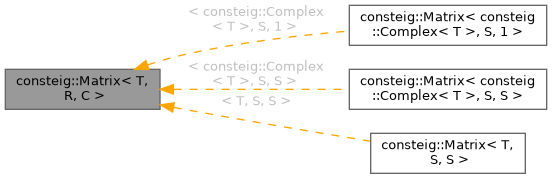

Inheritance diagram for consteig::Matrix< T, R, C >:

[legend]

Public Member Functions
constexpr T &	operator() (const Size row, const Size col)
	Access element at row `row`, column `col` (mutable).

constexpr const T &	operator() (const Size row, const Size col) const
	Access element at row `row`, column `col` (read-only).

template<typename U >
constexpr bool	operator== (const Matrix< U, R, C > &rhs) const
	Exact element-wise equality. Prefer equalWithin(rhs, thresh) for floats.

template<typename U >
constexpr bool	operator!= (const Matrix< U, R, C > &rhs) const
	Inequality (exact). Prefer negated equalWithin(rhs, thresh) for floats.

constexpr Matrix< T, 1, C >	row (const Size n) const
	Extract row `n` as a 1×C matrix.

template<Size startIndex, Size endIndex>
constexpr Matrix< T, 1, endIndex - startIndex+1 >	row (const Size n) const
	Extract a contiguous subset of row `n`.

constexpr Matrix< T, R, 1 >	col (const Size n) const
	Extract column `n` as an R×1 matrix.

template<Size startIndex, Size endIndex>
constexpr Matrix< T, endIndex - startIndex+1, 1 >	col (const Size n) const
	Extract a contiguous subset of column `n`.

template<Size numRows, Size numCols>
constexpr Matrix< T, numRows, numCols >	block (Size startRow, Size startCol) const
	Extract a rectangular submatrix.

constexpr void	setRow (const Matrix< T, 1, C > &mat, const Size n)
	Overwrite row `n` with the contents of `mat`.

template<Size startIndex, Size endIndex>
constexpr void	setRow (const Matrix< T, 1, endIndex - startIndex+1 > &mat, const Size n)
	Overwrite a contiguous subset of row `n`.

constexpr void	setCol (const Matrix< T, R, 1 > &mat, const Size n)
	Overwrite column `n` with the contents of `mat`.

template<Size startIndex, Size endIndex>
constexpr void	setCol (const Matrix< T, endIndex - startIndex+1, 1 > &mat, const Size n)
	Overwrite a contiguous subset of column `n`.

template<Size numRows, Size numCols>
constexpr void	setBlock (const Matrix< T, numRows, numCols > &mat, Size startRow, Size startCol)
	Overwrite a rectangular subregion of this matrix.

constexpr bool	isSquare () const
	Returns `true` if the matrix has equal row and column counts.

constexpr bool	isSymmetric () const
	Returns `true` if the matrix is symmetric within machine epsilon.

template<typename U >
constexpr bool	isSymmetric (const U thresh) const
	Returns `true` if the matrix is symmetric within `thresh`.

constexpr bool	equalWithin (const Matrix< T, R, C > &rhs, const T thresh) const
	Returns `true` if every element of `rhs` is within `thresh` of the corresponding element of `*this`.

constexpr Size	rows () const
	Number of rows (same as template parameter `R`).

constexpr Size	cols () const
	Number of columns (same as template parameter `C`).

constexpr T *	data ()
	Raw pointer to first element (mutable).

constexpr const T *	data () const
	Raw pointer to first element (read-only).


constexpr Matrix< T, C, R >	transpose () const
	Member convenience wrappers that delegate to free functions.

constexpr T	trace () const
	Returns the trace. Delegates to consteig::trace.

constexpr T	determinant () const
	Returns the determinant. Delegates to consteig::determinant.

constexpr T	norm () const
	Returns the Frobenius norm. Delegates to consteig::norm.

constexpr T	dot (const Matrix< T, R, C > &other) const
	Dot product with `other`. Delegates to consteig::dot.

Detailed Description

template<typename T, Size R, Size C>
class consteig::Matrix< T, R, C >

Fixed-size matrix with compile-time dimensions.

The primary container type for all consteig operations. All member functions are constexpr, enabling full compile-time evaluation when the matrix is declared static constexpr.

Storage is row-major: _data[i][j] holds row i, column j. Element access uses operator()(i, j) using zero-based indices.

Template Parameters

T	Scalar element type. Floating-point types (`float`, `double`, `long double`) are required for eigensolver and decomposition operations. Integer types are supported for pure arithmetic.
R	Number of rows (compile-time constant).
C	Number of columns (compile-time constant).

// 2x2 matrix of doubles
static constexpr consteig::Matrix<double, 2, 2> A{{
    {1.0, 2.0},
    {3.0, 4.0}
}};
static constexpr double val = A(0, 1); // 2.0

Member Function Documentation

◆ row() [1/2]

template<typename T , Size R, Size C>

constexpr Matrix< T, 1, C > consteig::Matrix< T, R, C >::row ( const Size n ) const

inlineconstexpr

Extract row n as a 1×C matrix.

Parameters

n	Zero-based row index. Must be `< R`.

◆ row() [2/2]

template<typename T , Size R, Size C>

template<Size startIndex, Size endIndex>

constexpr Matrix< T, 1, endIndex - startIndex+1 > consteig::Matrix< T, R, C >::row ( const Size n ) const

inlineconstexpr

Extract a contiguous subset of row n.

Template Parameters

startIndex	First column index (inclusive, compile-time).
endIndex	Last column index (inclusive, compile-time).

Parameters

n	Zero-based row index.

Returns: 1×(endIndex-startIndex+1) matrix.

◆ col() [1/2]

template<typename T , Size R, Size C>

constexpr Matrix< T, R, 1 > consteig::Matrix< T, R, C >::col ( const Size n ) const

inlineconstexpr

Extract column n as an R×1 matrix.

Parameters

n	Zero-based column index. Must be `< C`.

◆ col() [2/2]

template<typename T , Size R, Size C>

template<Size startIndex, Size endIndex>

constexpr Matrix< T, endIndex - startIndex+1, 1 > consteig::Matrix< T, R, C >::col ( const Size n ) const

inlineconstexpr

Extract a contiguous subset of column n.

Template Parameters

startIndex	First row index (inclusive, compile-time).
endIndex	Last row index (inclusive, compile-time).

Parameters

n	Zero-based column index.

Returns: (endIndex-startIndex+1)×1 matrix.

◆ block()

template<typename T , Size R, Size C>

template<Size numRows, Size numCols>

constexpr Matrix< T, numRows, numCols > consteig::Matrix< T, R, C >::block	(	Size	startRow,
		Size	startCol ) const

inlineconstexpr

Extract a rectangular submatrix.

Returns a numRows × numCols submatrix starting at (startRow, startCol). Dimensions are compile-time constants; start position is runtime.

Template Parameters

numRows	Number of rows to extract (compile-time).
numCols	Number of columns to extract (compile-time).

Parameters

startRow	Top-left row index (zero-based, runtime).
startCol	Top-left column index (zero-based, runtime).

◆ setRow() [1/2]

template<typename T , Size R, Size C>

constexpr void consteig::Matrix< T, R, C >::setRow	(	const Matrix< T, 1, C > &	mat,
		const Size	n )

inlineconstexpr

Overwrite row n with the contents of mat.

Parameters

mat	1×C source matrix.
n	Zero-based target row index.

◆ setRow() [2/2]

template<typename T , Size R, Size C>

template<Size startIndex, Size endIndex>

constexpr void consteig::Matrix< T, R, C >::setRow	(	const Matrix< T, 1, endIndex - startIndex+1 > &	mat,
		const Size	n )

inlineconstexpr

Overwrite a contiguous subset of row n.

Template Parameters

startIndex	First column to write (inclusive, compile-time).
endIndex	Last column to write (inclusive, compile-time).

Parameters

mat	Source 1×(endIndex-startIndex+1) matrix.
n	Zero-based target row index.

◆ setCol() [1/2]

template<typename T , Size R, Size C>

constexpr void consteig::Matrix< T, R, C >::setCol	(	const Matrix< T, R, 1 > &	mat,
		const Size	n )

inlineconstexpr

Overwrite column n with the contents of mat.

Parameters

mat	R×1 source matrix.
n	Zero-based target column index.

◆ setCol() [2/2]

template<typename T , Size R, Size C>

template<Size startIndex, Size endIndex>

constexpr void consteig::Matrix< T, R, C >::setCol	(	const Matrix< T, endIndex - startIndex+1, 1 > &	mat,
		const Size	n )

inlineconstexpr

Overwrite a contiguous subset of column n.

Template Parameters

startIndex	First row to write (inclusive, compile-time).
endIndex	Last row to write (inclusive, compile-time).

Parameters

mat	Source (endIndex-startIndex+1)×1 matrix.
n	Zero-based target column index.

◆ setBlock()

template<typename T , Size R, Size C>

template<Size numRows, Size numCols>

constexpr void consteig::Matrix< T, R, C >::setBlock	(	const Matrix< T, numRows, numCols > &	mat,
		Size	startRow,
		Size	startCol )

inlineconstexpr

Overwrite a rectangular subregion of this matrix.

Copies the numRows × numCols source matrix mat into this matrix starting at (startRow, startCol). Dimensions are compile-time; start position is runtime.

Template Parameters

numRows	Number of rows to write (compile-time).
numCols	Number of columns to write (compile-time).

Parameters

mat	Source matrix of dimensions `numRows × numCols`.
startRow	Top-left target row (zero-based, runtime).
startCol	Top-left target column (zero-based, runtime).

◆ isSymmetric() [1/2]

template<typename T , Size R, Size C>

constexpr bool consteig::Matrix< T, R, C >::isSymmetric ( ) const

inlineconstexpr

Returns true if the matrix is symmetric within machine epsilon.

Uses equalWithin with epsilon<T>() as the tolerance. For floating-point matrices, prefer the threshold overload to control the tolerance explicitly.

Precondition: R == C (enforced by static_assert).

◆ isSymmetric() [2/2]

template<typename T , Size R, Size C>

template<typename U >

constexpr bool consteig::Matrix< T, R, C >::isSymmetric ( const U thresh ) const

inlineconstexpr

Returns true if the matrix is symmetric within thresh.

Checks every off-diagonal pair (i,j) / (j,i) using equalWithin. Use this overload when you need explicit control over the symmetry tolerance (e.g., for the eigenvalue solver routing threshold CONSTEIG_DEFAULT_SYMMETRIC_TOLERANCE).

Template Parameters

U	Type of the threshold. Must be floating-point.

Parameters

thresh Absolute tolerance for the symmetry check.

Precondition: R == C and T must be a floating-point type.

◆ equalWithin()

template<typename T , Size R, Size C>

constexpr bool consteig::Matrix< T, R, C >::equalWithin	(	const Matrix< T, R, C > &	rhs,
		const T	thresh ) const

inlineconstexpr

Returns true if every element of rhs is within thresh of the corresponding element of *this.

The free function equalWithinMat delegates to this. Prefer this over operator== for floating-point matrices.

Parameters

rhs	Matrix to compare against.
thresh	Absolute per-element tolerance.

◆ transpose()

template<typename T , Size R, Size C>

constexpr Matrix< T, C, R > consteig::Matrix< T, R, C >::transpose ( ) const

inlineconstexpr

Member convenience wrappers that delegate to free functions.

Returns the transpose. Delegates to consteig::transpose.

The documentation for this class was generated from the following file:

include/consteig/matrix/matrix.hpp
