Control Theory¶
When system parameters and controller gains are known at compile-time, consteig can verify that the closed-loop poles meet performance requirements, turning a runtime failure into a build failure. At compile-time, consteig can validate that the chosen gains for a PID loop meet the performance requirements for a system. Consider the DC Motor Position: PID Controller Design, along with the state space model from the University of Michigan. The information known at compile-time is:
- The motor parameters (and thus state space model)
- Chosen gains
- System performance requirements
When building the system with gains that do not meet the performance requirements,
static_assert can validate system gains by preventing compilation.
Full source: examples/dc_motor_control.cpp.
How it Works¶
// Closed-loop state matrix (formed from motor model + PID gains)
static constexpr consteig::Matrix<double, 4, 4> A_cl = /* ... */;
// Compute closed-loop poles at compile time
static constexpr auto poles = consteig::eigenvalues(A_cl);
// All poles must be in the left half-plane (negative real part)
static_assert(check_stability(poles), "System is unstable");
// Settling time check: all poles must have real part < POLE_LIMIT
static_assert(check_settling_time(poles, POLE_LIMIT_FOR_SETTLING),
"Settling time less than 0.040 seconds [FAILED]");
// Overshoot check: damping ratio must exceed ZETA_LIMIT
static_assert(check_overshoot(poles, ZETA_LIMIT_FOR_OVERSHOOT),
"Overshoot less than 16% [FAILED]");
Bad Gains: Build Error¶
...
/Users/mitchellthompkins/workspace/consteig/examples/dc_motor_control.cpp:143:19: error: static assertion failed due to requirement 'check_settling_time(eigs_bad, POLE_LIMIT_FOR_SETTLING)': Scenario 2 REJECTED: Settling time less than 0.040 seconds [FAILED]
143 | static_assert(check_settling_time(eigs_bad, POLE_LIMIT_FOR_SETTLING),
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
/Users/mitchellthompkins/workspace/consteig/examples/dc_motor_control.cpp:145:19: error: static assertion failed due to requirement 'check_overshoot(eigs_bad, ZETA_LIMIT_FOR_OVERSHOOT)': Scenario 2 REJECTED: Overshoot less than 16% [FAILED]
145 | static_assert(check_overshoot(eigs_bad, ZETA_LIMIT_FOR_OVERSHOOT),
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
This aligns with the output produced by octave:
...
State Feedback Gains: K = [21.0000, 0.0500, 0.0000, -200.0000]
Closed-Loop Poles:
-1454381.2397 (real)
-77.7191 +192.3253j -> zeta=0.3747
-77.7191 -192.3253j -> zeta=0.3747
-9.8632 (real)
Validation:
[PASS] Stability check (All poles in LHP)
[FAIL] Settling time less than 0.040 seconds (Actual: 0.0509 s)
[FAIL] Overshoot less than 16% (Actual: 33.40 %)
[PASS] No steady-state error (Enforced by integral action)
Good Gains: Build Succeeds¶

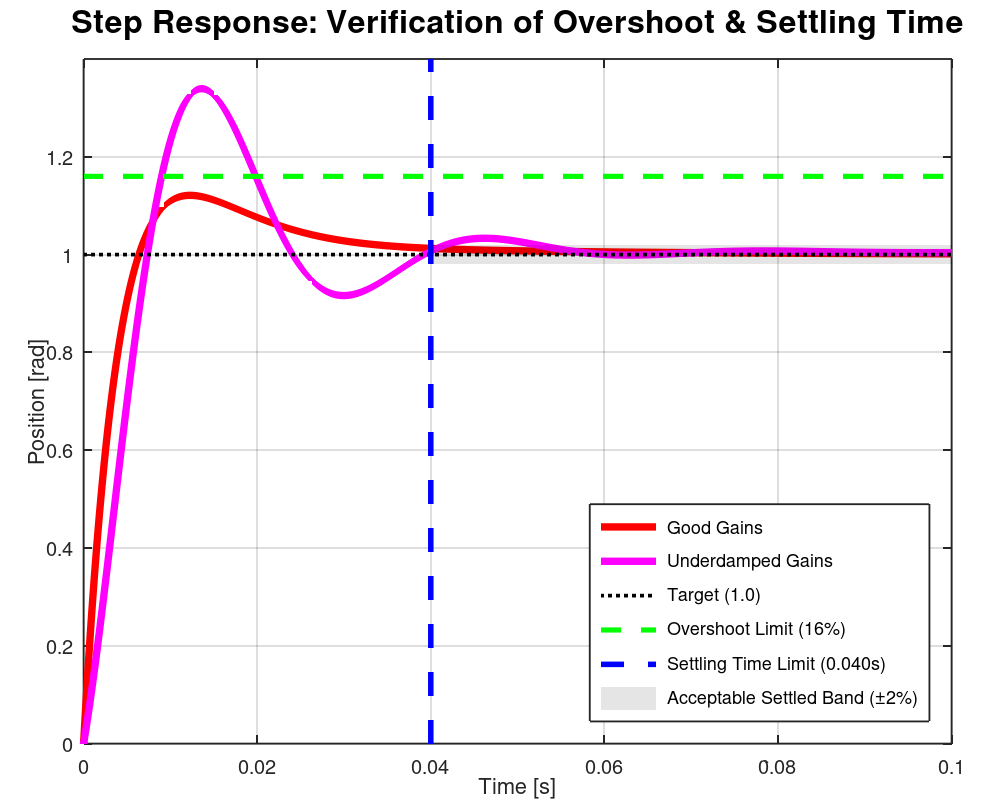

With properly tuned gains, the build completes and the system is guaranteed to meet requirements. The step response plot below shows the validated system behavior:
